NEW: Micro-Hydraulics: The Small Power Pack
With the new micro-hydraulic cylinders, high forces can be realized in a compact construction. With the standard piston diameters from 13 – 24mm and a maximum pressure of 200 bar, forces up to 9,000N can be achieved. The stroke will be individually adjusted according to the customer’s requirements.
By using numerous components of the gas spring manufacturer, high flexibility and short delivery times are available.
Product Characteristics:
- Piston Diameter: 13, 16, 19 & 24mm
- Stroke Length: 30 – 250mm
- Function: Double Acting
- Operating Pressure: Maximum 200 bar
- Extension Force: Up To 9000N
*EL1:The total length is calculated when the piston rod is inserted.Please add the length of the connecting parts in order to find out the total length.

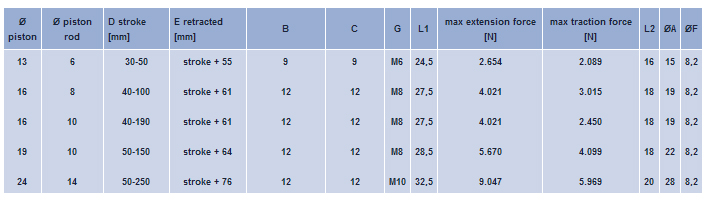

Dimensions:
 |
Connectors: Connectors for standard high pressure tubes with plug-in coupling DN2 |

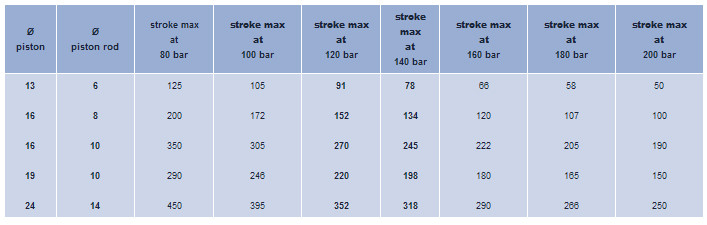

Maximum stroke lengths:
The maximum stroke length will be determined in relation to the force of the cylinders in order to avoid the bending of the cylinders
The maximum stroke length will be determined in relation to the force of the cylinders in order to avoid the bending of the cylinders
